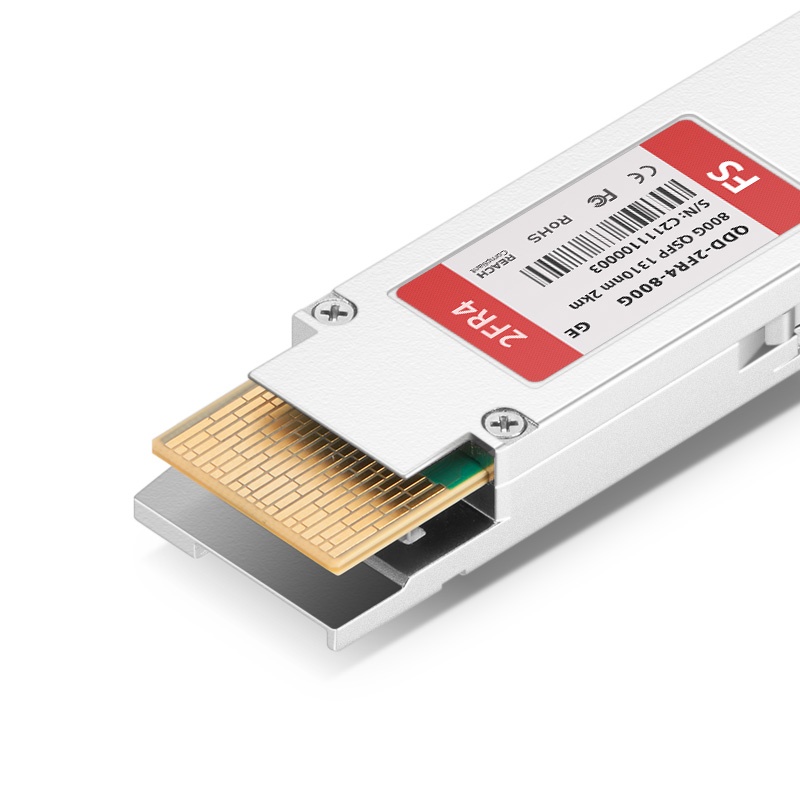

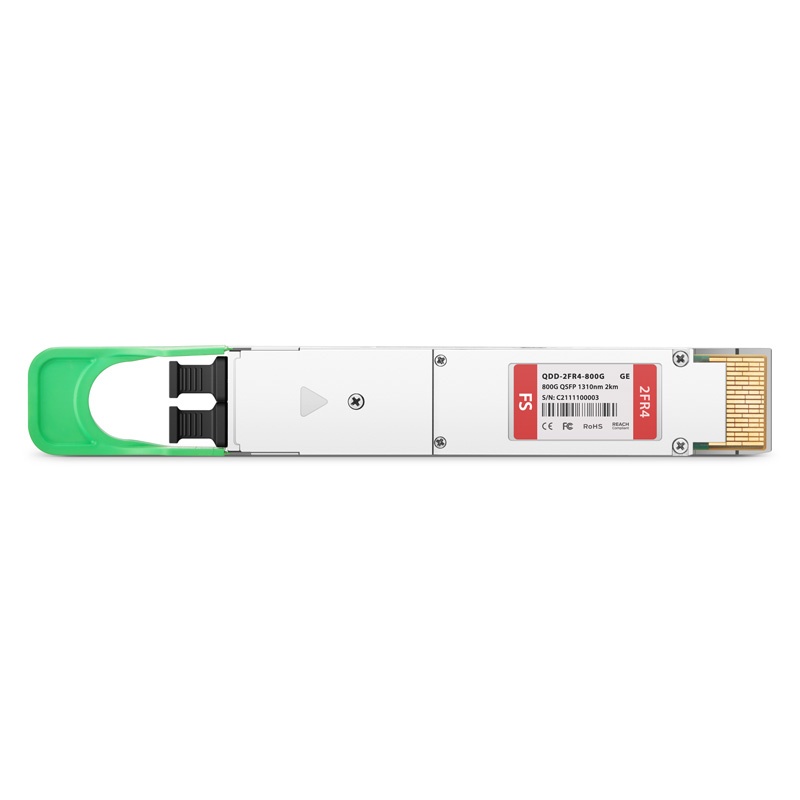

Generic Compatible 800G QSFP-DD Transceiver Module (SMF, 1310nm, 2km, CS, DOM)

Generic Compatible 800GBASE-2FR4 QSFP-DD PAM4 1310nm 2km DOM Dual CS SMF Optical Transceiver Module

The Generic Compatible QSFP-DD transceiver supports up to 2km link lengths over single-mode fiber (SMF) via dual CS connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G FR4, Data Center and Cloud Networks.



Description

Part Number	QDD800-2FR4-C1	Vendor Name	FS
Form Factor	QSFP-DD	Max Data Rate	850Gbps (8x 106.25Gbps)
Wavelength	1271nm, 1291nm, 1311nm and 1331nm	Max Cable Distance	2km
Connector	Dual CS	Cable Type	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-3.2~4.4dBm	Receiver Sensitivity	<-7.2dBm
Powerbudget	4dB	Receiver Overload	5.4dBm
Power Consumption	≤16W	Extinction Ratio	>3.5dB
Packaging Technology	COB (Chip on Board) Packaging	Modulation Format	PAM4
CDR (Clock and Data Recovery)	TX & RX Built-in CDR	FEC Function	Supported
Protocols	IEE802.3ck, IEEE 802.3cu, QSFP-DD MSA	Warranty	5 Years
