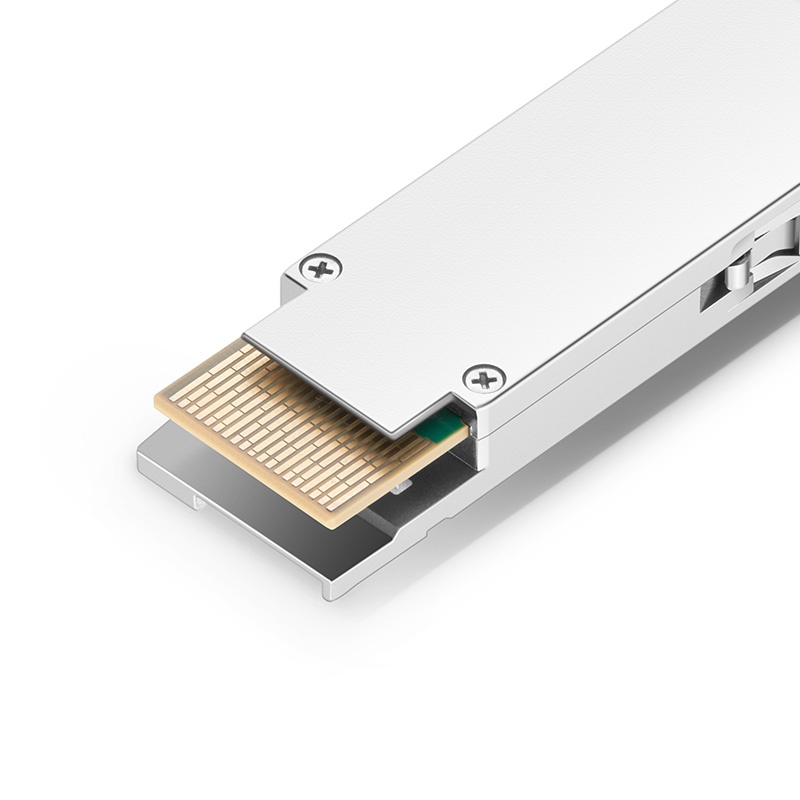

800GBASE-XDR8 QSFP-DD Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO-16, DOM)

$5,699.00

Generic Compatible 800GBASE-XDR8 QSFP-DD PAM4 1310nm 2km DOM MTP/MPO-16 SMF Optical Transceiver Module

The Generic Compatible QSFP-DD transceiver supports up to 2km link lengths over single-mode fiber (SMF) via MTP/MPO-16 connectors. This transceiver is compliant with lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G XDR4 or 8x 100G FR Application.

Category:
Part Number QDD800-XDR8-B1 Vendor Name FS
Form Factor QSFP-DD Max Data Rate 850Gbps (8x 106.25Gbps)
Wavelength 1310nm Max Cable Distance 2km
Connector MTP/MPO-16 Media SMF
Transmitter Type EML Receiver Type PIN
TX Power -3.1~4dBm Receiver Sensitivity <-7.1dBm
Powerbudget 4dB Receiver Overload 4dBm
Power Consumption ≤18W Extinction Ratio >3.5dB
Packaging Technology COB (Chip on Board) Packaging Modulation Format PAM4
CDR (Clock and Data Recovery) TX and RX Built-in CDR FEC Function KP4-FEC
Protocols CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA Warranty 5 Years
