| FS for Mellanox Compatible | MFS1S00-V030E | Ime prodajalca | FS |
| Connector Type | QSFP56 to QSFP56 | Največja hitrost prenosa podatkov | 200Gbps |
| Minimum Bend Radius | 30mm | Cable Length | 30m (98ft) |
| Jacket Material | LSZH | Cable Type | OM3 |
| Vrsta oddajnika | VSCEL | Vrsta sprejemnika | PIN |
| Valovna dolžina | 850nm | Poraba energije | ≤4.5W |
| Power Supply | 3.3V | Oblika modulacije | PAM4 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | DDM/DOM | Supported |
| CDR (Ura in obnovitev podatkov) | TX & RX Built-in CDR | Protokoli | IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636, InfiniBand HDR |
| MTBF | ≈3.2 Million Hours | Application | Podatkovno središče, 200Gb/s InfiniBand HDR systems |
| Garancija | 5 leta |

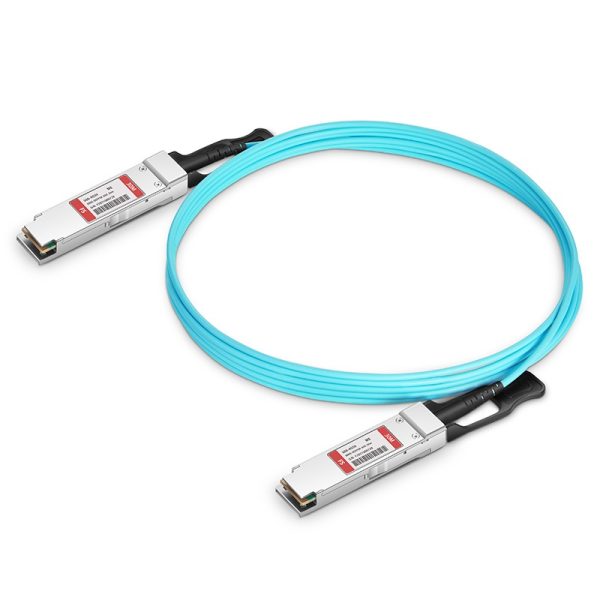

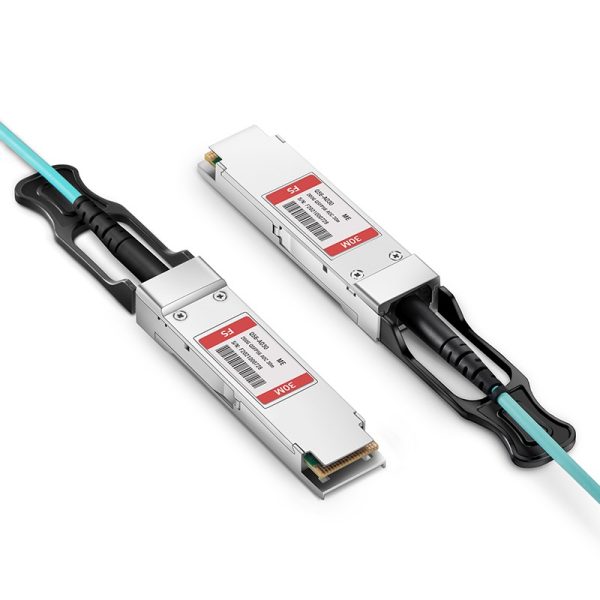

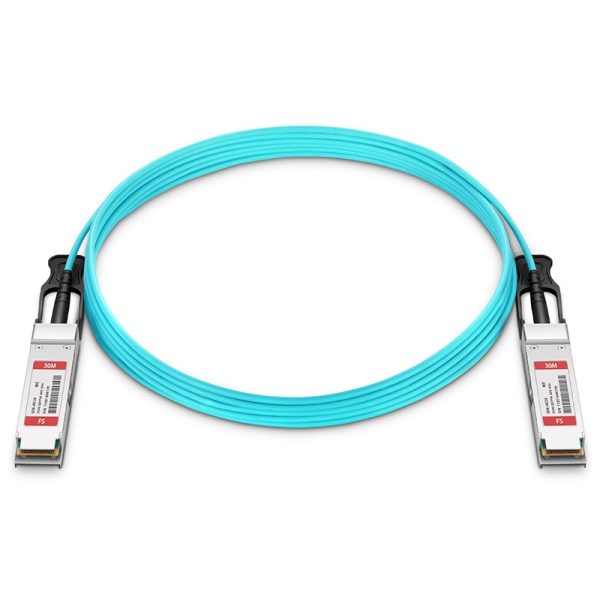

30m (98ft) FS for Mellanox MFS1S00-V030E Compatible 200G QSFP56 Active Optical Cable
$861.00
FS for Mellanox MFS1S00-V030E Compatible 200G QSFP56 AOC (30-meter, QSFP56 to QSFP56)
The 200G QSFP56 active optical cable is designed for use in 200 Gigabit Ethernet links over OM3 multimode fiber, it contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s. This active optical cable is compliant with IEEE 802.3, SFF-8665, SFF-8636, QSFP56 MSA and InfiniBand HDR.
Ocene
Ni še nobene ocene.
