| 部品番号 | Q56-2Q56PCxx | 業者名 | FS |
| フォームファクタ | QSFP56 to 2 QSFP56 | 最大データレート | 200Gbps |
| メディア | Copper | Cable Type | Passive Twinax |
| Cable Length | Customized | Wire AWG | 30AWG for 0.5m~1.5m, 26AWG for 2m~3m |
| Minimum Bend Radius | 26mm for 0.5m~1.5m, 30mm for 2m~3m | 消費電力 | ≤0.5W |
| Jacket Material | PVC (OFNR) | 商用温度範囲 | 0 70℃まで (32 ～158°F) |
| プロトコル | IEEE 802.3cd, SFF-8665, QSFP56 MSA | 保証 | 5 年 |

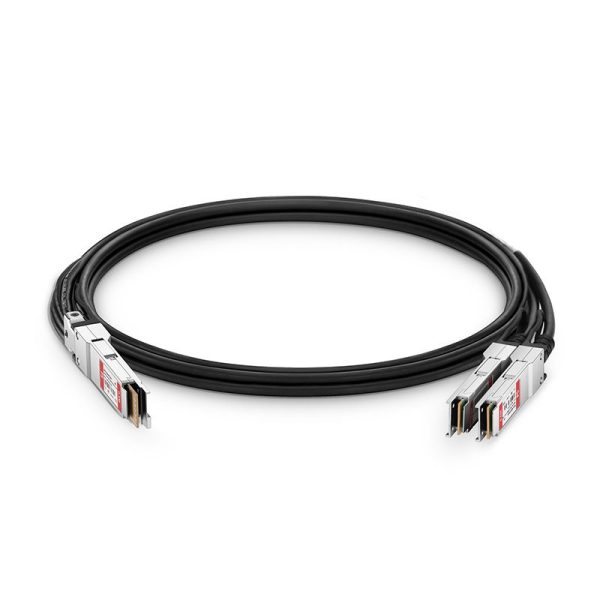

Customized 200G QSFP56 to 2x100G QSFP56 Passive Direct Attach Copper Breakout Cable
$75.00
200G QSFP56 to 2x100G QSFP56 DAC Breakout Cable (3-meter, Passive, QSFP56 to 2 QSFP56, 26AWG)
200G QSFP56 to 2x100G QSFP56 Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with IEEE 802.3cd, SFF-8665, QSFP56 MSA standards. It provides a connection of a 200G QSFP56port on one end and to two 100G QSFP56 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
