Compatibilité Cisco | QDD-400G-LR8-S | Nom du fournisseur | FS |
Facteur de forme | QSFP-DD | Débit de données maximal | 425Gbit/s |
Longueur d'onde | 1310nm | Distance maximale du câble | 10kilomètres |
Connecteur | LC duplex | Médias | SMF |
Type d'émetteur | LWDM EML | Type de récepteur | PIN |
Puissance d'émission | -2.8~5.3dBm | Sensibilité du récepteur | <-9.1dBm |
Budget énergétique | 6.3dB | Surcharge du récepteur | 5.3dBm |
Consommation d'énergie | ≤14W | Taux d'extinction | 3.5dB |
DDM/DOM | Prise en charge | Plage de température commerciale | 0 à 70°C (32 à 158 °F) |
DSP | TX and RX | Host FEC | Prise en charge |
Protocoles | QSFP-DD MSA Compliant | garantie | 5 Années |
Cisco QDD-400G-LR8-S Compatible 400GBASE-LR8 QSFP-DD PAM4 1310nm 10km DOM Optical Transceiver Module (SMF, 1310nm, 10kilomètres, CL, DOM)
$6,299.00

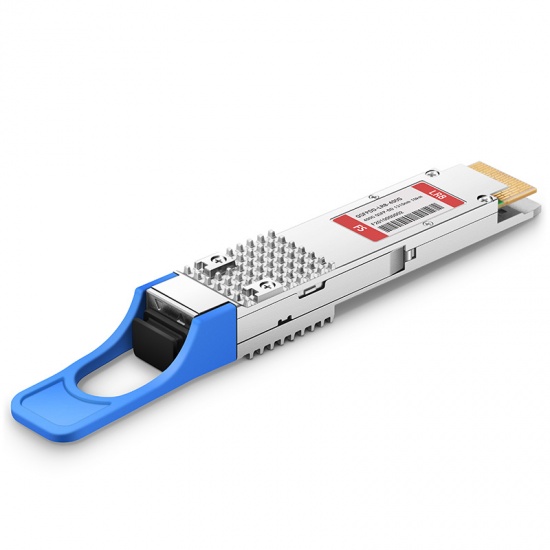

Cisco QDD-400G-LR8-S Compatible 400GBASE-LR8 QSFP-DD PAM4 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
The 400GBASE-LR8 module supports link lengths of up to 10km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. Le 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
