| Part Number | OSFP800-DR8-B1 | Toimittajan nimi | FS |
| Muotoseikka | OSFP | Suurin tiedonsiirtonopeus | 850Gbps (8x 106.25Gbps) |
| Aallonpituus | 1310nm | Kaapelin maksimietäisyys | 500m |
| Liitin | MTP/MPO-16 | Media | SMF |
| Lähettimen tyyppi | EML | Vastaanottimen tyyppi | SiFotonics PD array |
| Lähetysteho | -2.9~4.0dBm | Vastaanottimen herkkyys | ＜-5.9dBm |
| Powerbudget | 3dB | Vastaanottimen ylikuormitus | 4dBm |
| Tehon kulutus | ≤16.5W | Extinction Ratio | >3.5dB |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
| CDR (Clock and Data Recovery) | TX and RX Built-in CDR | FEC Function | Support RS-FEC |
| Protokollat | CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Takuu | 5 Vuosia |

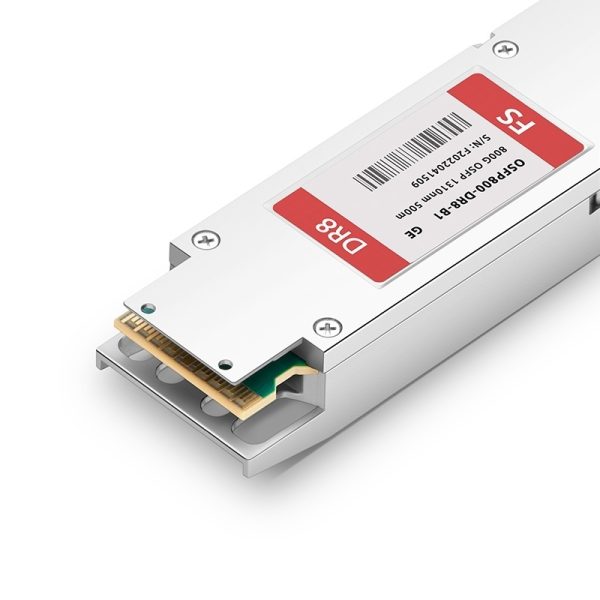

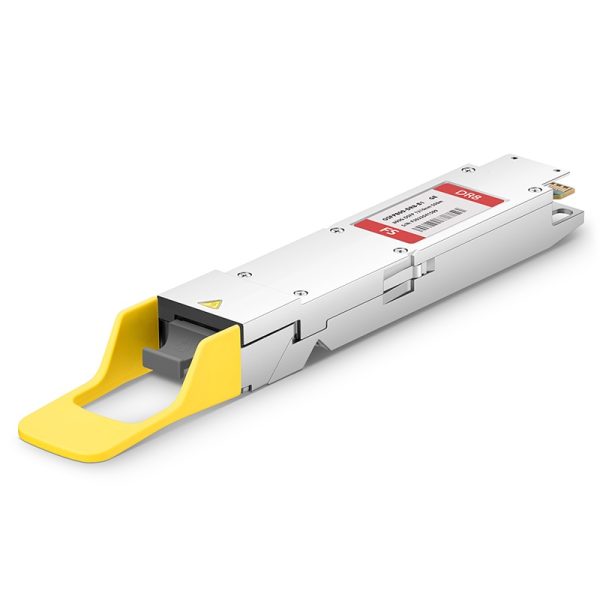

800GBASE-DR8 OSFP Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO-16, DOM)
$5,059.00
Generic Compatible 800GBASE-DR8 OSFP PAM4 1310nm 500m DOM MTP/MPO-16 SMF Optical Transceiver Module
The 800GBASE-DR8 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with lEEE P802.3ck, IEEE 802.3cu, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR Application.
