Dell Compatible | Q28DD-200G-2SR4 | Toimittajan nimi | FS |
Muotoseikka | QSFP-DD | Suurin tiedonsiirtonopeus | 206.24Gbps(8x 25.78Gbps) |
Aallonpituus | 850nm | Kaapelin maksimietäisyys | 100m |
Liitin | MTP/MPO-24 | Media | Rahamarkkinarahasto |
Lähettimen tyyppi | VCSEL | Vastaanottimen tyyppi | PIN-koodi |
Lähetysteho | -8.4~2.4dBm | Vastaanottimen herkkyys | <-10.3dBm |
Powerbudget | 1.9dB | Vastaanottimen ylikuormitus | 3.4dBm |
Tehon kulutus | ≤4.5W | Extinction Ratio | >2dB |
DDM/DOM | Tuettu | Kaupallinen lämpötila-alue | 0 70°C:een (32 158°F:een) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | FEC Function | Tuettu |
Protokollat | IEEE 802.3bm, QSFP-DD MSA-yhteensopiva, CMIS 4.0 | Takuu | 5 Vuosia |
200GBASE-2SR4 QSFP-DD Optical Transceiver Module (SMF, 850nm, 100m, MTP/MPO-24, DOM)
$529.00

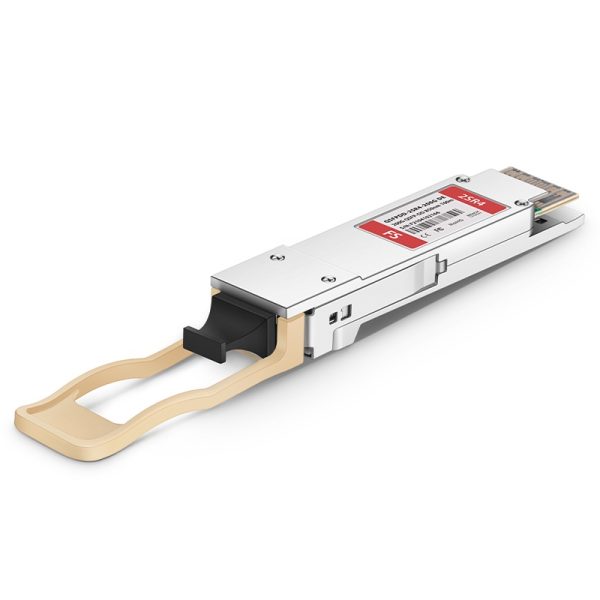

Dell Q28DD-200G-2SR4 Compatible 200GBASE-2SR4 QSFP-DD 850nm 100m DOM MTP/MPO-24 MMF Optical Transceiver Module
The Dell Q28DD-200G-2SR4 Compatible QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (Rahamarkkinarahasto) via MTP/MPO-24 connectors.
This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.
