| Part Number | QSFPDD-SR8-400G | Vendor Name | FS |
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-16 | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -6~4dBm | Receiver Sensitivity | <-7.9dBm |
| Powerbudget | 1.9dB | Receiver Overload | 4dBm |
| Power Consumption | ≤10W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DSP | TX and RX | Host FEC | Supported |
| Protocols | QSFP-DD MSA Compliant | Warranty | 5 Years |

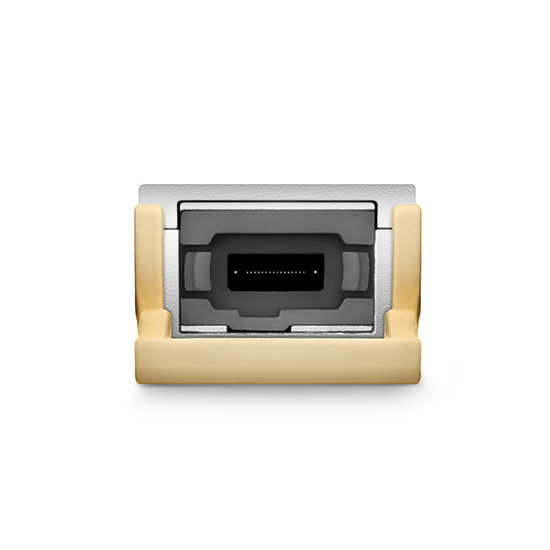

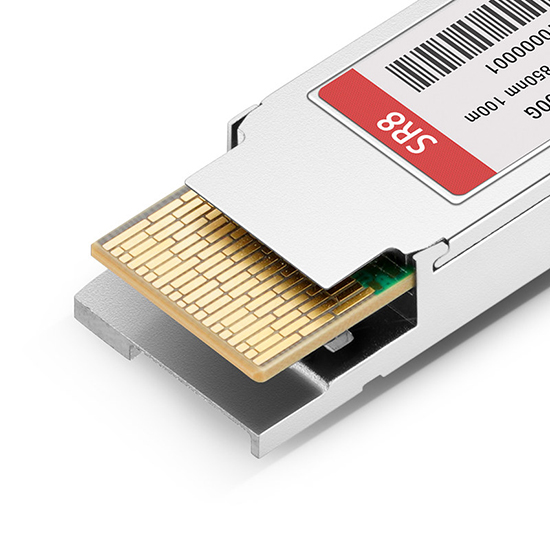

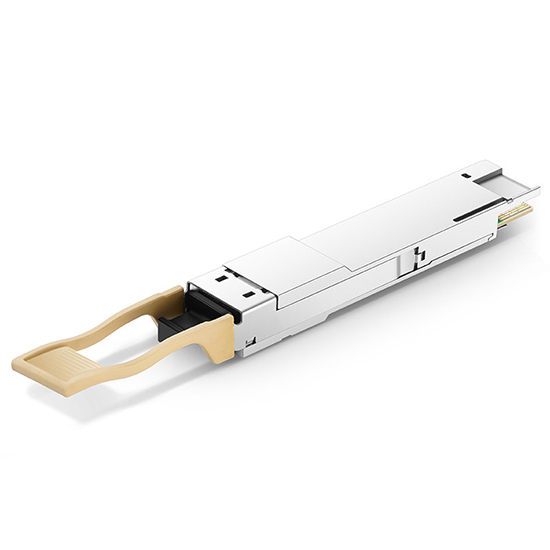

Cisco Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
$599.00
Cisco Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MTP/MPO-16 MMF Optical Transceiver Module
The 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
