| Cisco Compatible | QDD-4X100G-LR-S | Vendor Name | FS |
| Form Factor | QSFPDD | Max Data Rate | 400Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | MTP/MPO-12 | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1.9~4.8dBm | Receiver Sensitivity | -8.2dBm |
| Powerbudget | 6.3dB | Receiver Overload | 5.8dBm |
| Power Consumption | ≤ 10W | Extinction Ratio | 3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DSP | TX and RX | Host FEC | Supported |
| Protocols | QSFP-DD MSA Compliant | Warranty | 5 Years |

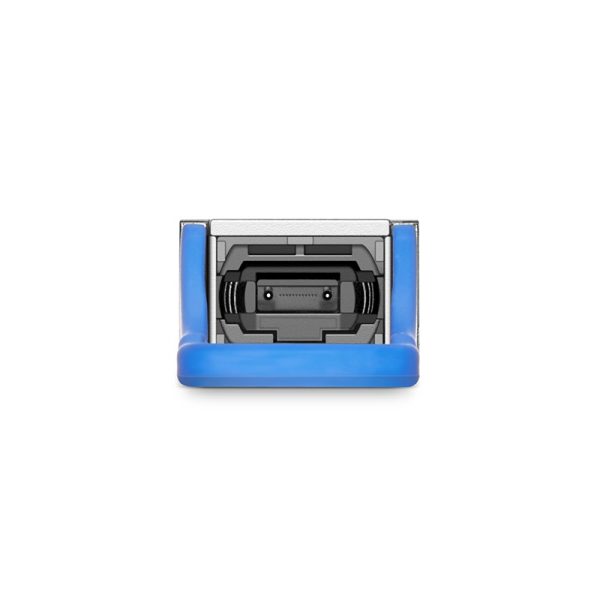

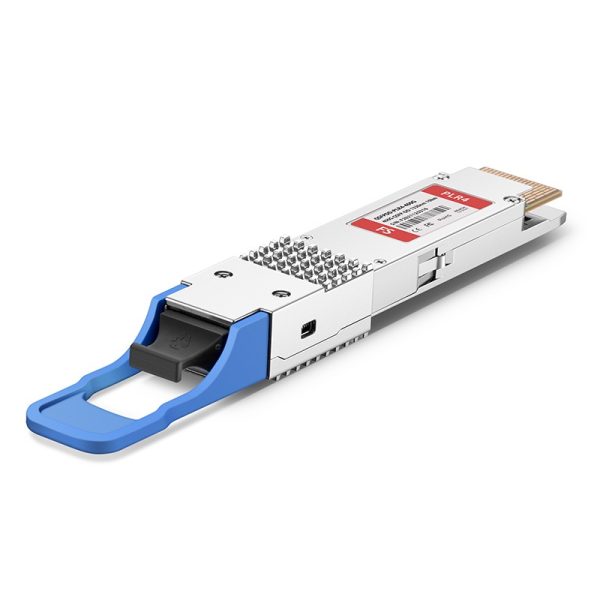

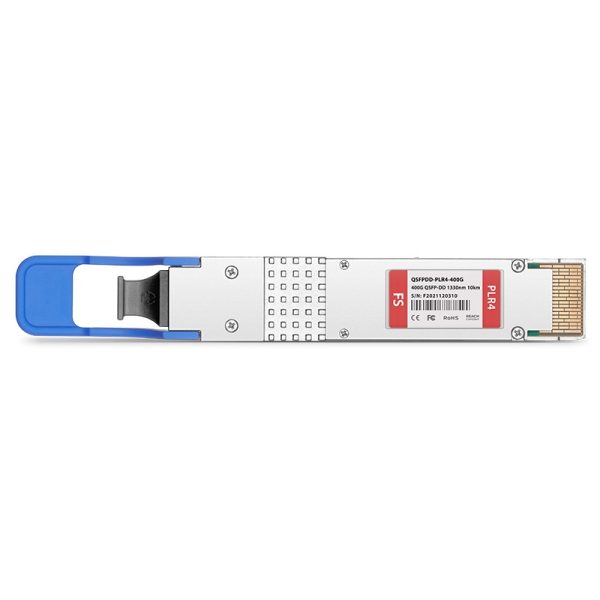

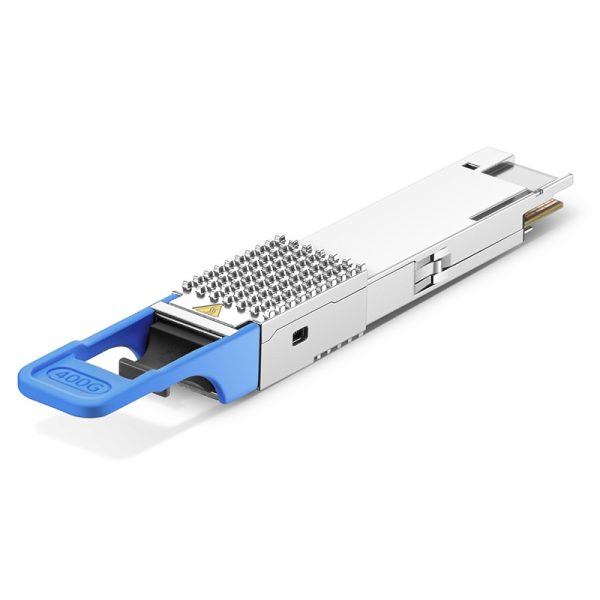

Cisco QDD-4X100G-LR-S Compatible 4x100GBASE-LR QSFP-DD PAM4 1310nm 10Km DOM Transceiver Module (SMF, 1310nm, 10Km, MTP/MPO, DOM)
$2,299.00
Cisco QDD-4X100G-LR-S Compatible 4x100GBASE-LR QSFPDD 1310nm 10km DOM MTP/MPO-12 SMF Optical Transceiver Module
The 400GBASE-PLR4 Module supports link lengths of up to 10km parallel SMF with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-LR-100G.
