| Part Number | QDD800-PC005 | Vendor Name | FS |
| Form Factor | QSFP-DD to QSFP-DD | Max Data Rate | 800Gbps |
| Media | Copper | Cable Type | Passive Twinax |
| Cable Length | 0.5m (2ft) | Wire AWG | 30AWG |
| Minimum Bend Radius | 69mm | Power Consumption | ≤0.005W |
| Jacket Material | PVC (OFNR) | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ck, QSFP-DD MSA | Warranty | 5 Years |

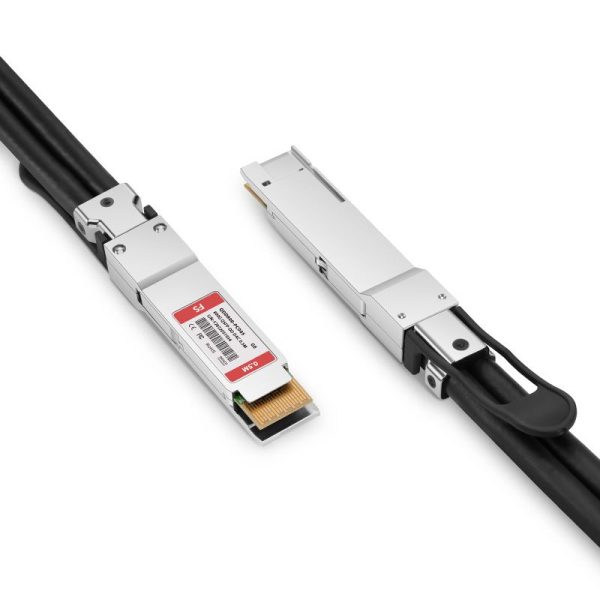

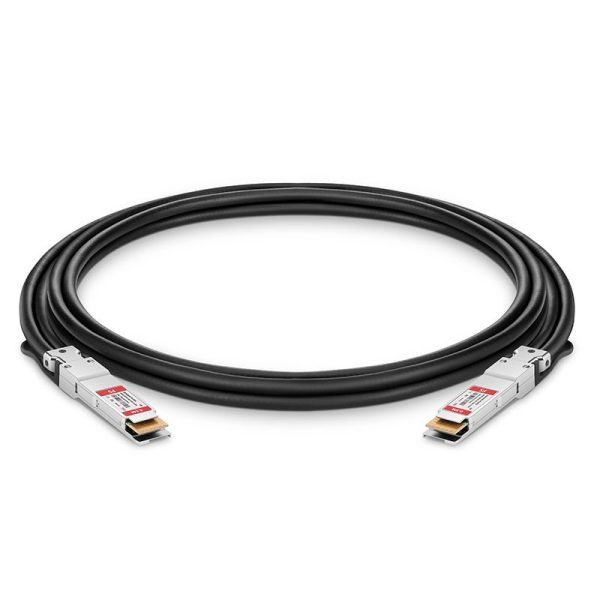

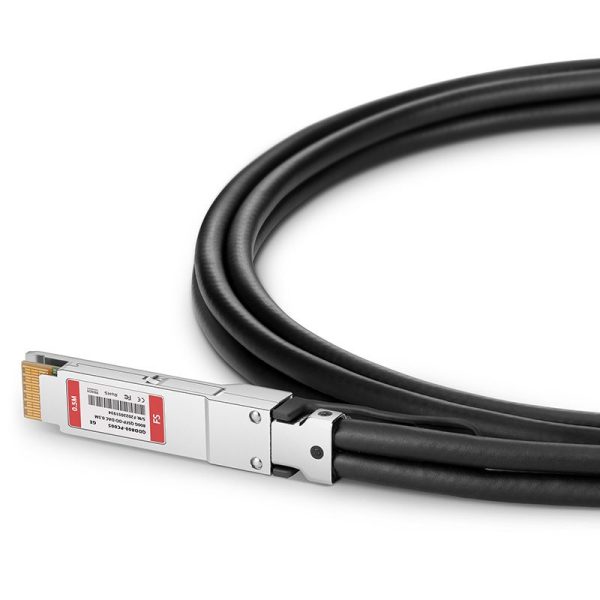

0.5m (2ft) Generic Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable
$299.00
Generic Compatible 800G QSFP-DD DAC Twinax Cable (0.5-meter, Pasivno, QSFP-DD to QSFP-DD, 30AWG)
The 800G QSFP-DD DAC is a high-speed, cost-effective alternative to fiber optics in 800G Ethernet applications. It contains 16 high-speed copper pairs, each operating at data rates of up to 100Gb/s. This cable is compliant with IEEE 802.3ck Ethernet standard and QSFP-DD MSA Compliant.
With these features, they provide power-efficient connectivity for short-distance interconnects and enable higher port bandwidth, density and configurability in the data centers.
