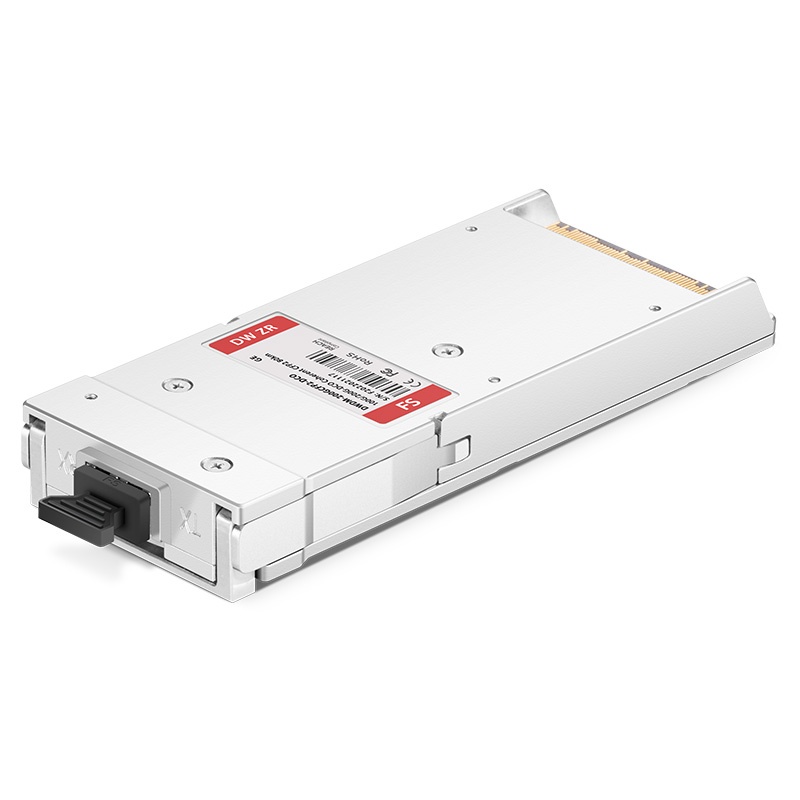

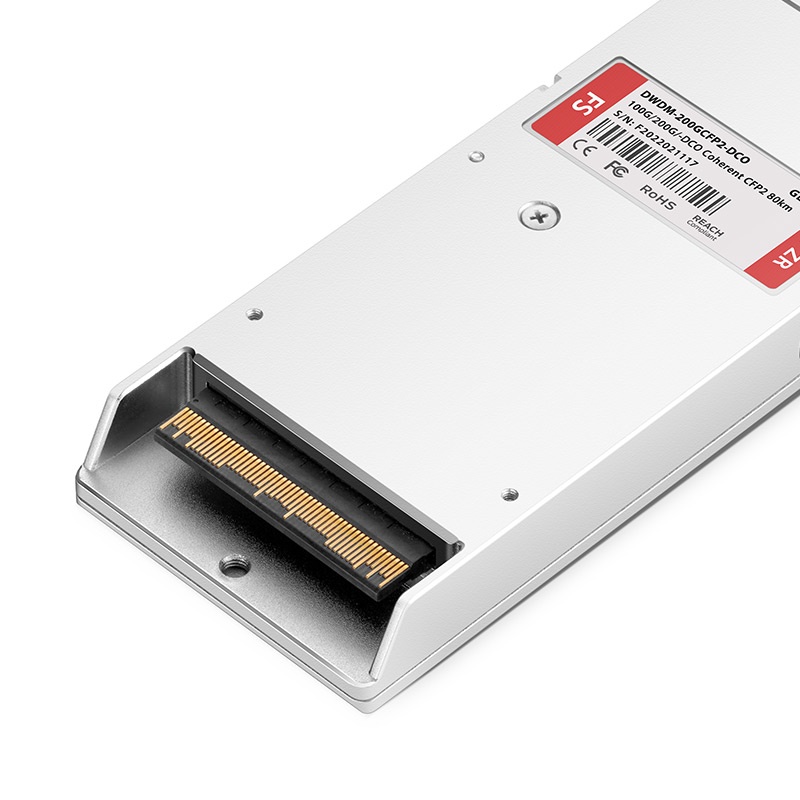

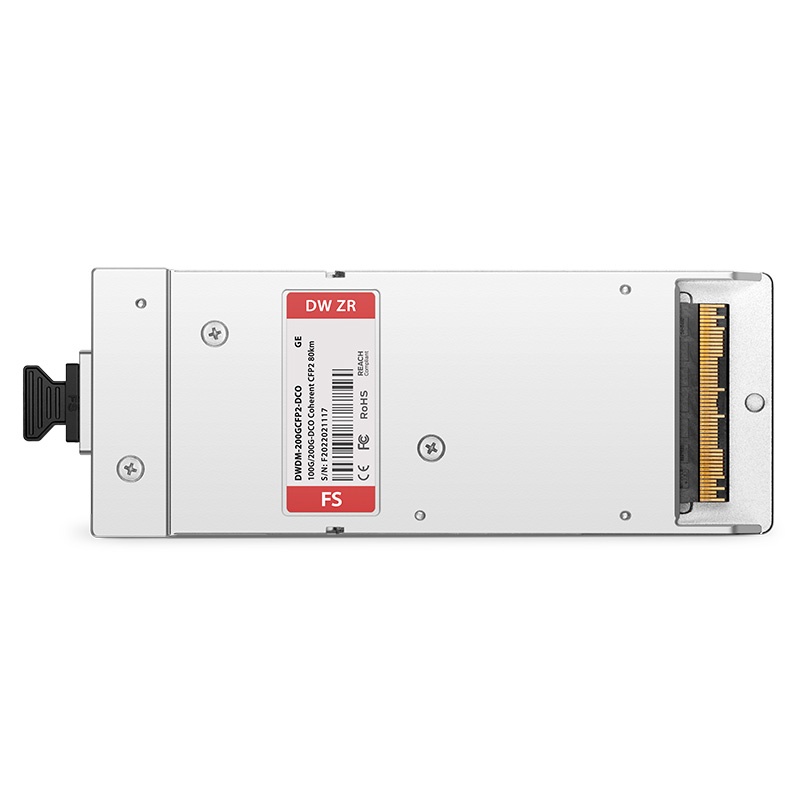

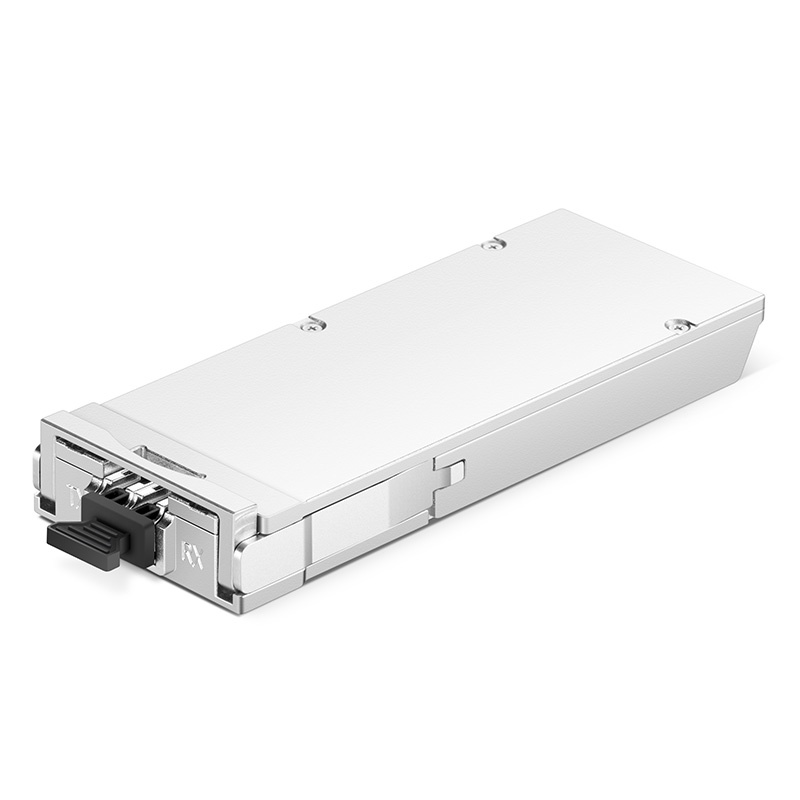

Generic Compatible 100G/200G Coherent CFP2-DCO Transceiver Module (DWDM, 50GHz, 80km, LC)


Generic Compatible 100G/200G DWDM Tunable ITU CH13-CH60 CFP2 DCO 50GHz 80km DOM Duplex LC SMF Transceiver Module


CFP2-DCO Coherent transceivers support flex-grid DWDM tuning and provide 200GBase-DCO throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1529.16 to 1567.13nm via an LC connector. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
It is designed for line-side trunk DWDM data center interconnect (DCI) and OTU4/OTUC1/OTUC2 metro optical transport network

Part Number DWDM-200CFP2-DCO Vendor Name FS
Form Factor CFP2 Max Data Rate 100/200Gbps
Grid Spacing 50GHz Frequency Range 191.3~196.05THz
Optical channels 96 Tunable Wavelength Tunable ITU CH13-CH60
Transmission Protocols PM-QPSK (100G)
PM-16QAM (200G)
Max Cable Distance 1000km (100G) w/ EDFA
800km (200G) w/ EDFA
Connector Duplex LC Media SMF
Tx output power -6.5~-2.5dBm Input Power Range -18~0dBm
Line Modulation PM-QPSK (100G)
PM-16QAM (200G)
Power Consumption <24W
Host FEC Supported Operating Temperature 0 to 70°C (32 to 158°F)
Protocols Electrical interfaces OTL4.4, OTLC1.4, CAU-I4, OTLC2.8 and CEI-28G-MR
CFP2 MSA Hardware Specification 1.0 with modifications compliant
CFP MSA Management Interface Specification 2.2 with modifications compliant
IEEE 802.3 clause 45
Warranty 5 Years
