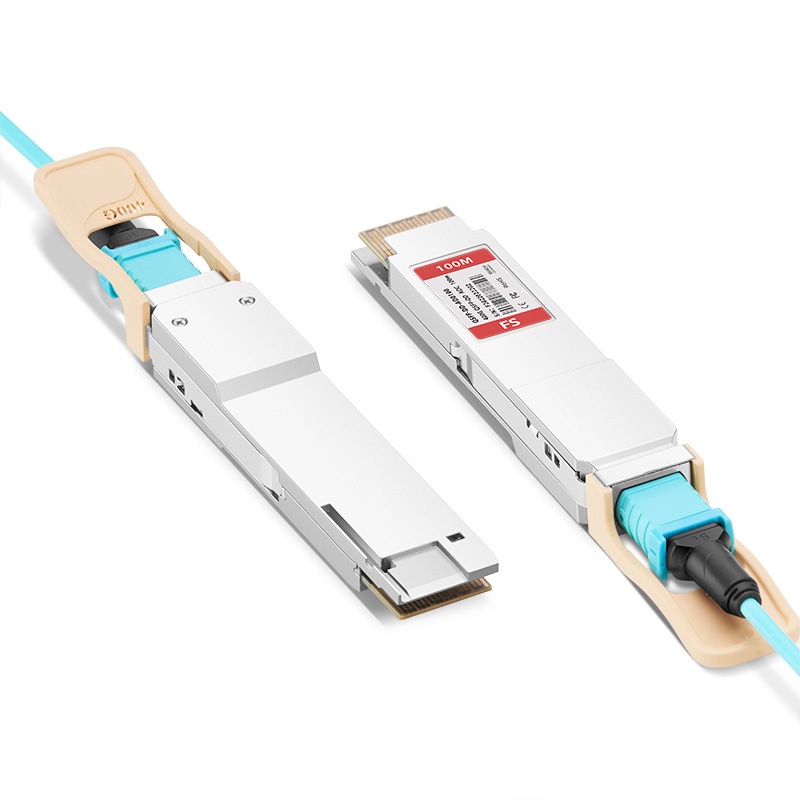

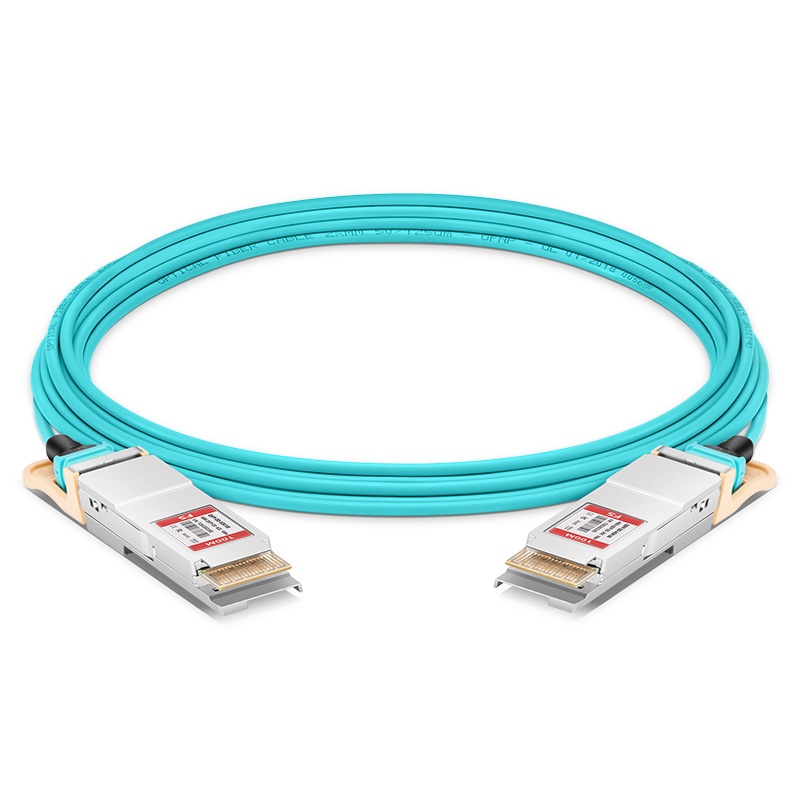

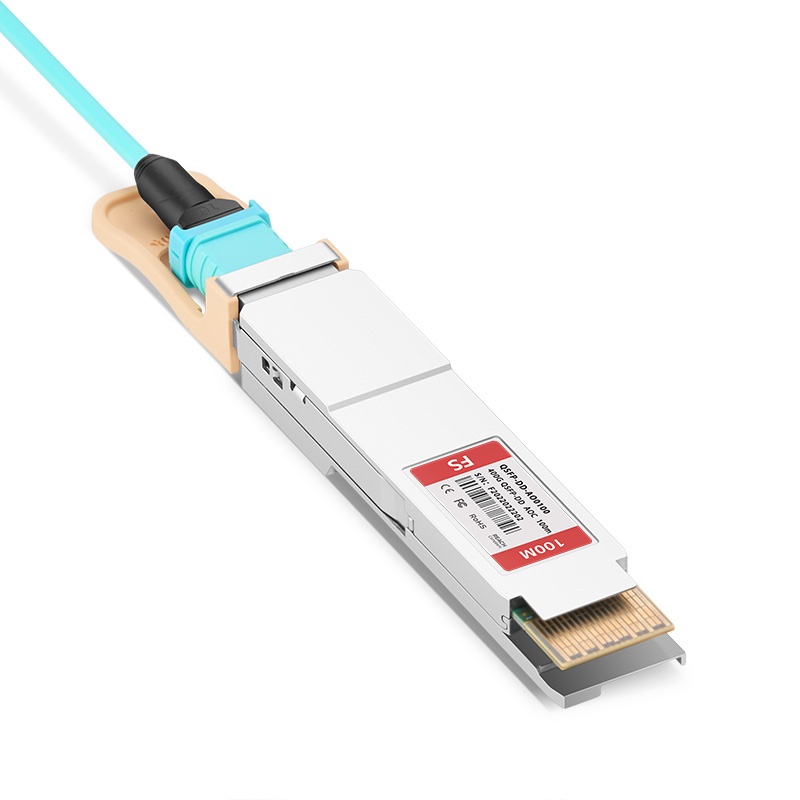

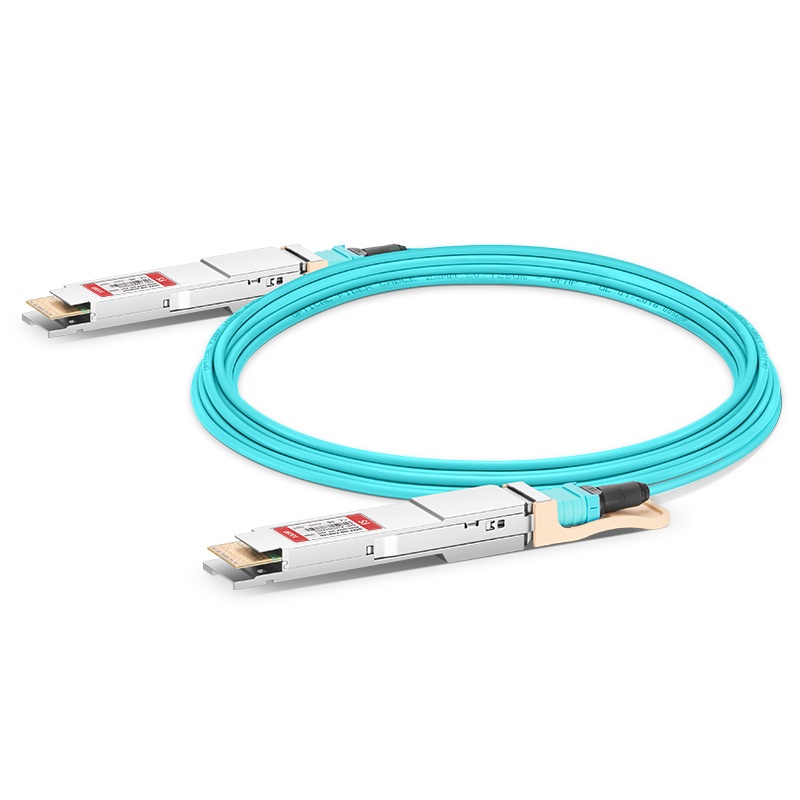

Customized 400G QSFP-DD Active Optical Cable


400G QSFP-DD AOC (Customized length, QSFP-DD to QSFP-DD)

Part Number QSFP-DD-AOxx Vendor Name FS
Form Factor QSFP-DD to QSFP-DD Max Data Rate 400Gbps
Cable Length Customized Cable Type OM4
Wavelength 850nm Minimum Bend Radius 30mm
Transmitter Type VSCEL Receiver Type 850nm PD
Power Consumption ≤11W Jacket Material LSZH
CDR (Clock and Data Recovery) TX & RX Built-in CDR Modulation Format PAM4
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA,QSFP-DD-CMIS-rev4p0 Host FEC KP4 FEC RS(544,514)
Application 8x 50G-PAM4 Warranty 5 Years
