|Part Number||Q56-ACxx||Vendor Name||FS|
|Form Factor||QSFP56 to QSFP56||Max Data Rate||200Gbps|
|Media||Copper||Cable Type||Active Twinax|
|Cable Length||Customized||Wire AWG||30AWG for 3m, 28AWG for 5m, 26AWG for 7m|
|Minimum Bend Radius||33mm for 3m, 40mm for 5m, 44.5mm for 7m||Power Consumption||≤1.5W|
|Jacket Material||PVC (OFNR)||Commercial Temperature Range||0 to 70°C (32 to 158°F)|
|Protocols||IEEE 802.3cd, SFF-8665, SFF-8679, SFF-8636||Warranty||5 Years|

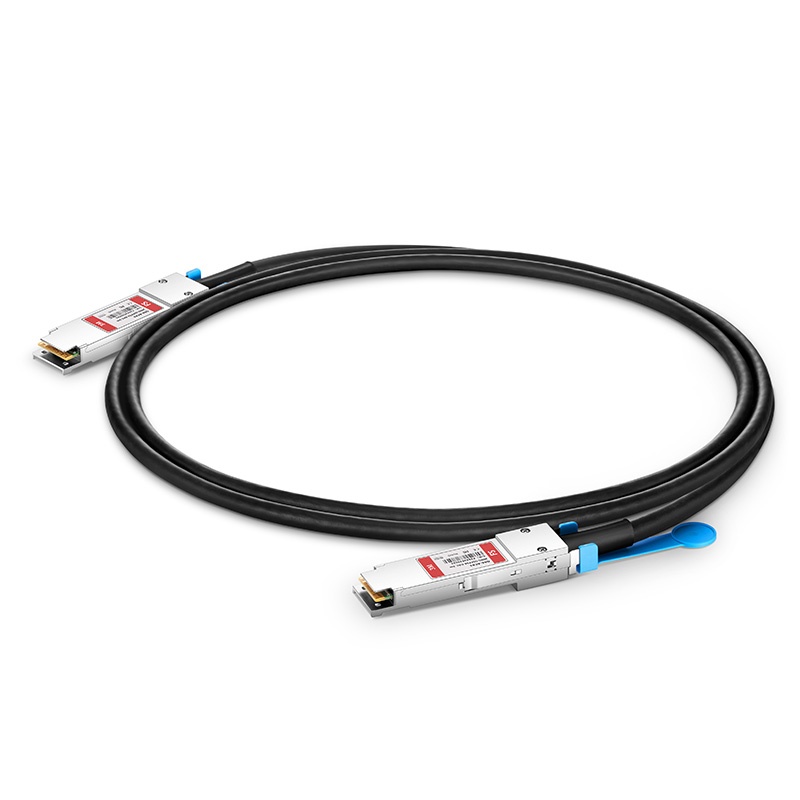

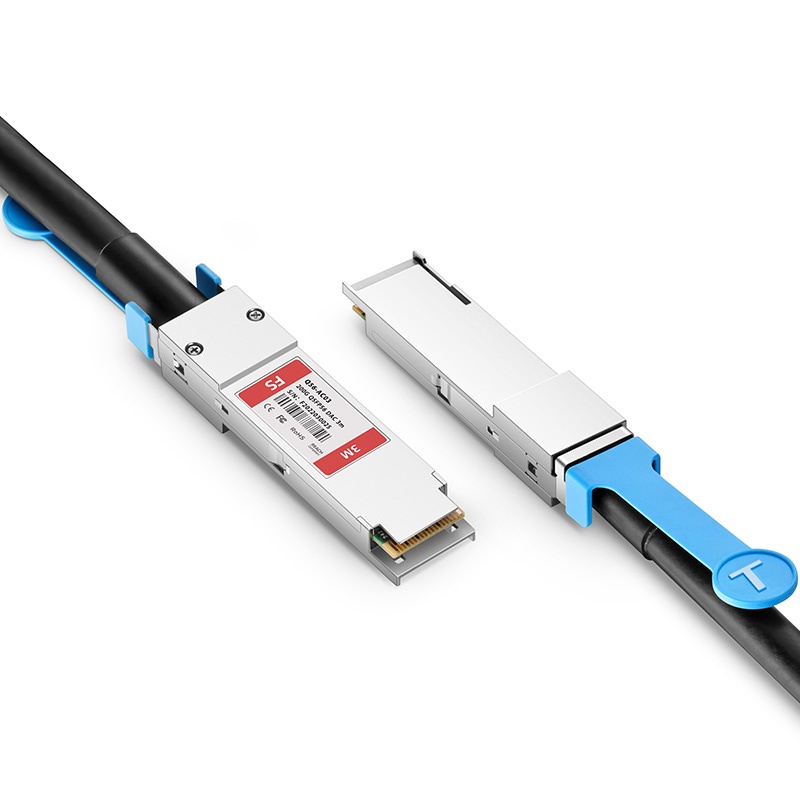

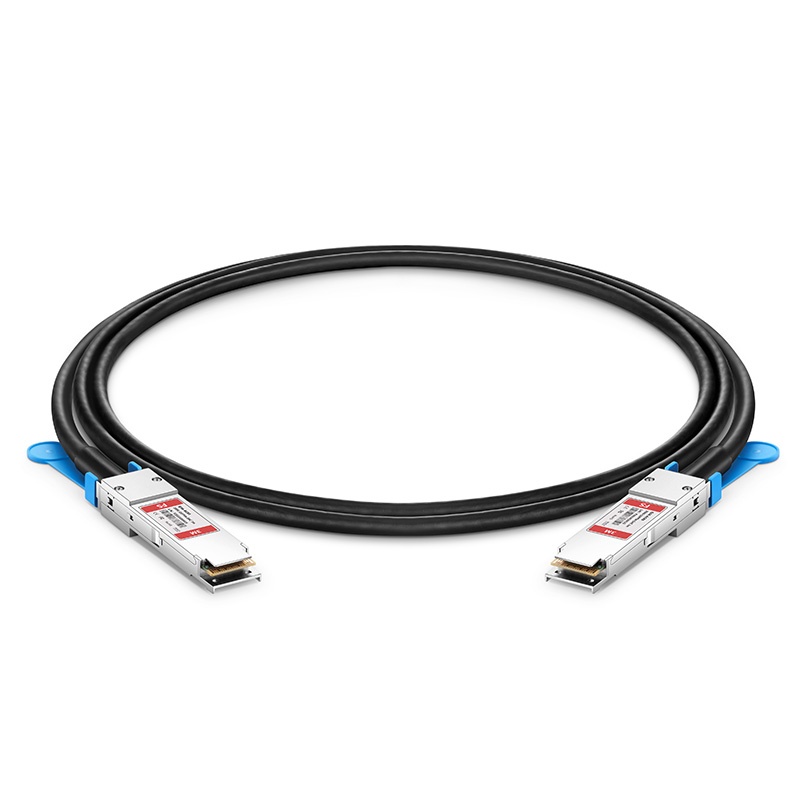

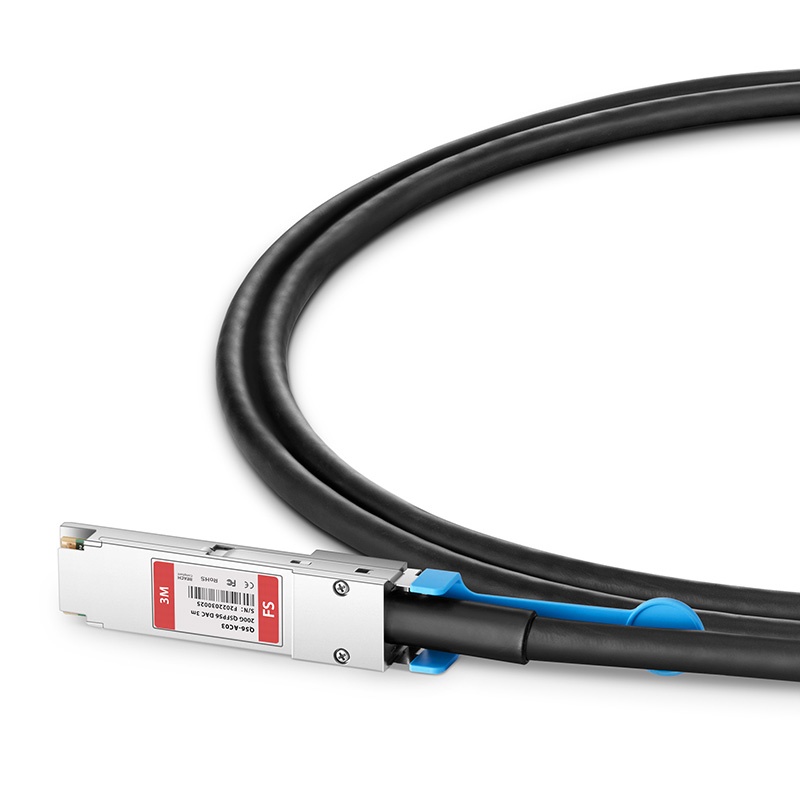

Customized 200G QSFP56 Active Direct Attach Copper Twinax Cable
200G QSFP56 DAC Twinax Cable (Customized length, Active, QSFP56 to QSFP56)
The FS for Mellanox 200G QSFP56 Active Direct Attach Copper Twinax Cable is designed for use in 200GBASE Ethernet. This cable is compliant with IEEE 802.3cd by Ethernet standard and QSFP MSA Compliant. Each QSFP56 connector comprises an EEPROM providing product information which can be read by the host system.
They are suitable for very short links and offer a cost-effective way to establish a 200G-Gigabit link between QSFP56-200G ports of switches/routers/servers/storages within racks and across adjacent racks.
