|Cisco Compatible||QSFP-100G-LR4-S||Vendor Name||FS|
|Form Factor||QSFP28||Max Data Rate||103.125Gbps (4x 25.78Gbps)|
|Wavelength||1310nm||Max Cable Distance||10km|
|Transmitter Type||4 x LAN WDM DML (DFB)||Receiver Type||PIN|
|TX Power||-4.3~4.5dBm||Receiver Sensitivity||<-10.6dBm|
|Power Consumption||≤3.5W||Extinction Ratio||>4dB|
|DDM/DOM||Supported||Commercial Temperature Range||0 to 70°C (32 to 158°F)|
|Modulation Format||NRZ||CDR (Clock and Data Recovery)||TX & RX Built-in CDR|
|Protocols||IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636||Warranty||5 Years|

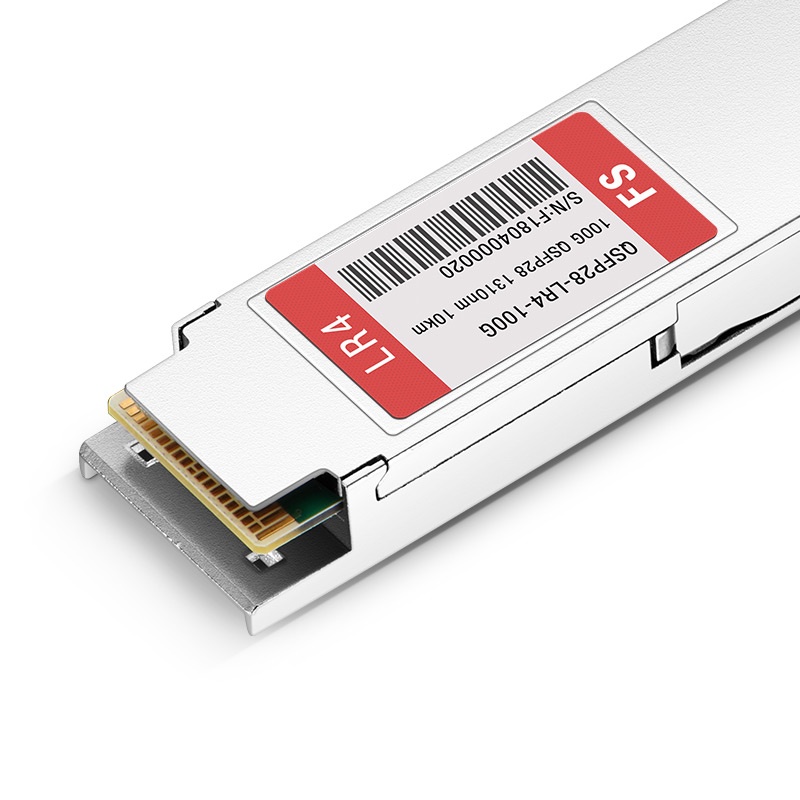

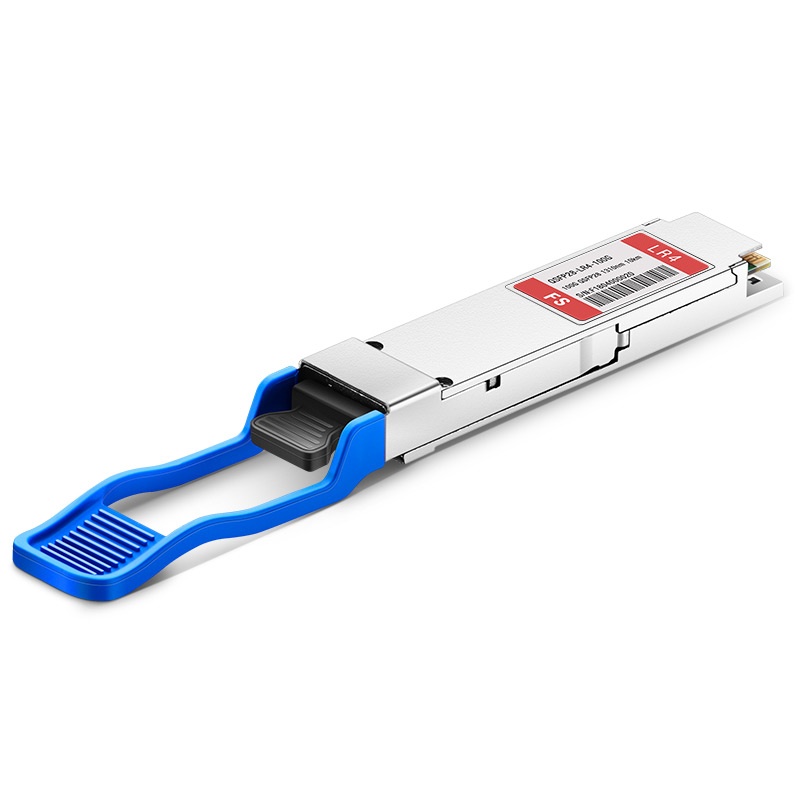

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
