|Cisco Compatible||QDD-400-CU1M||Vendor Name||FS|
|Connector Type||QSFP-DD to QSFP-DD||Max Data Rate||400Gbps|
|Minimum Bend Radius||33.5mm||Wire AWG||30AWG|
|Cable Length||1m (3.28ft)||Jacket Material||PVC (OFNR)|
|Cable Type||Passive Twinax||MTBF||≈50 Million Hours|
|Power Consumption||<0.1W||Power Supply||3.3V|
|Temperature||0 to 70°C (32 to 158°F)||Protocols||400G Ethernet|

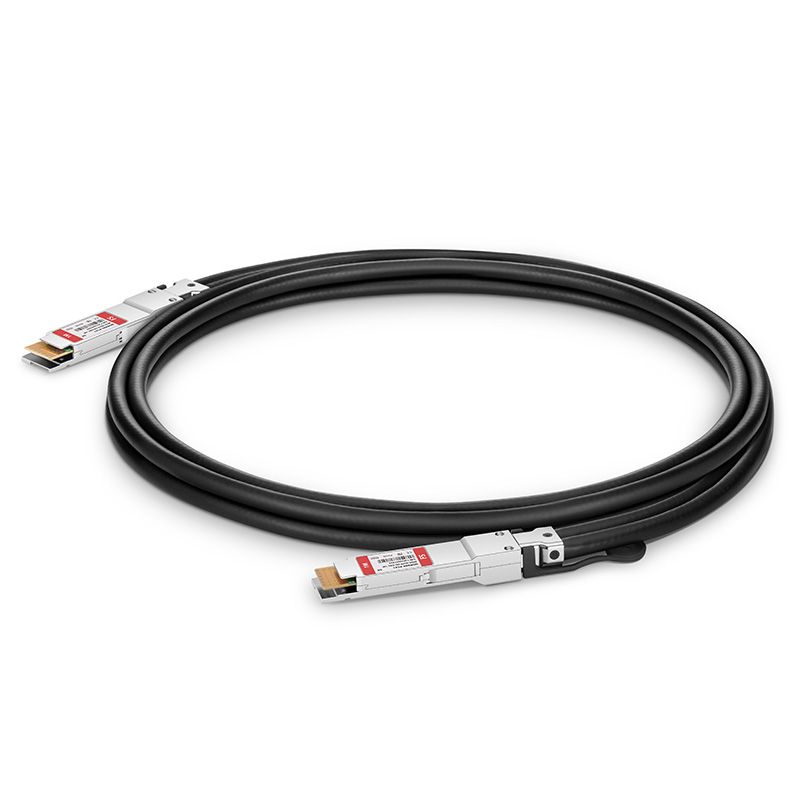

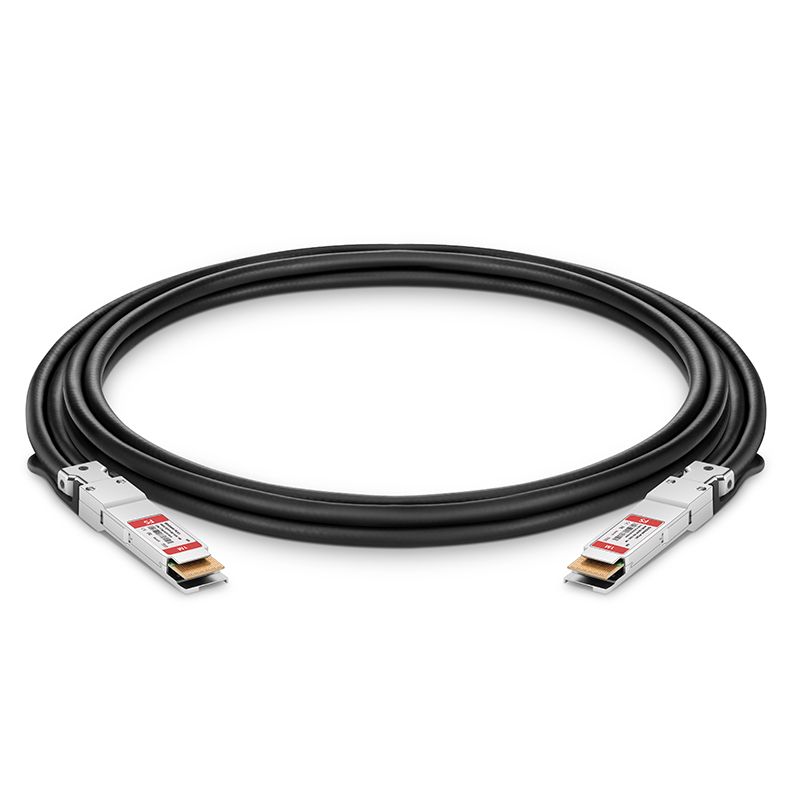

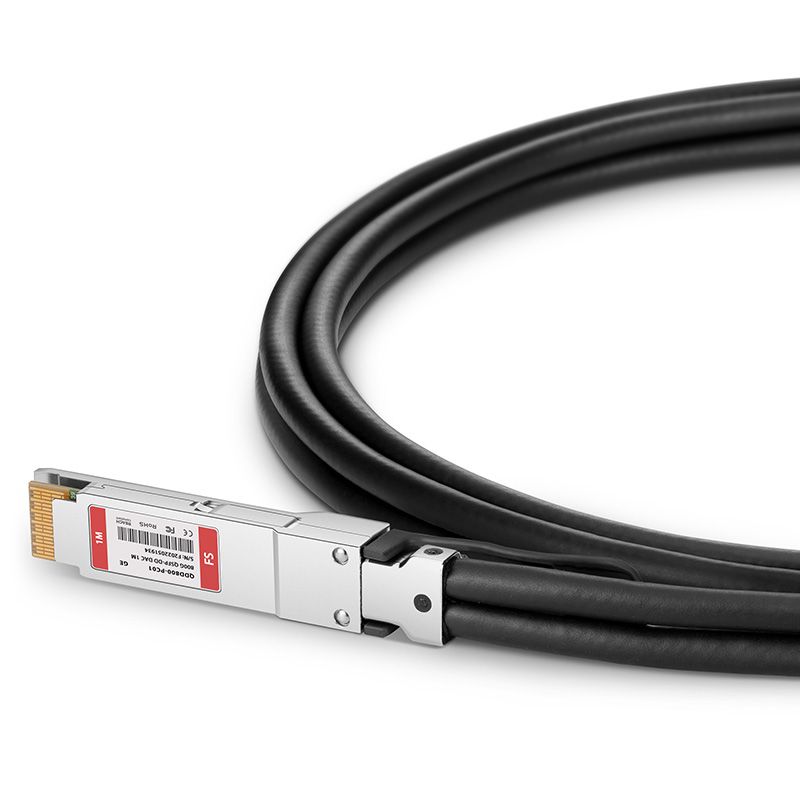

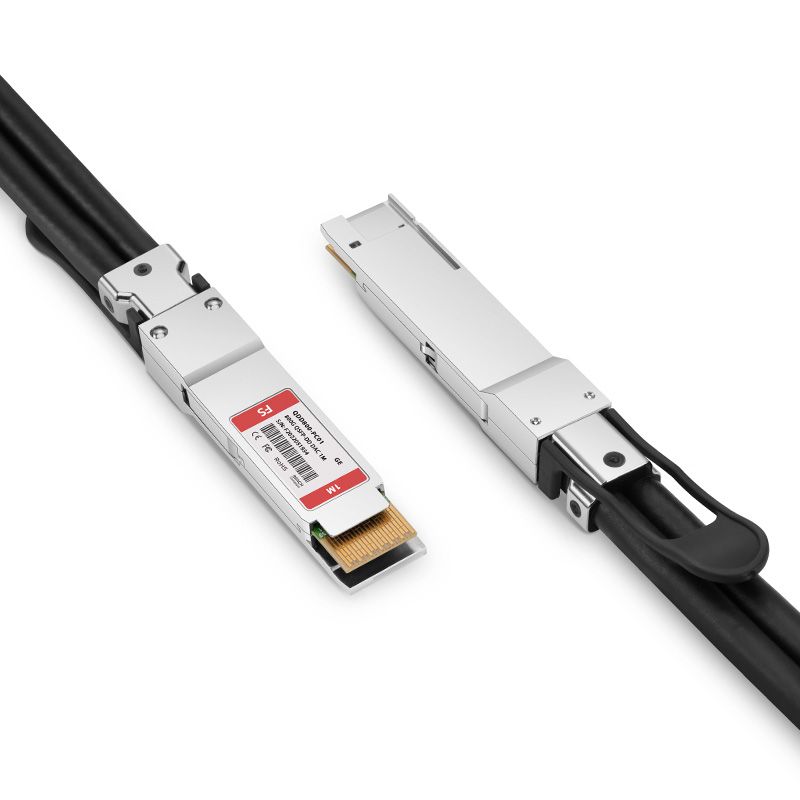

1m (3ft) Cisco QDD-400-CU1M Compatible 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
Cisco QDD-400-CU1M Compatible 400G QSFP-DD DAC Twinax Cable (1-meter, Passive, QSFP-DD to QSFP-DD, 30AWG)
The 400G QSFP-DD DAC primarily enables high-bandwidth 400G links and supports 400G Ethernet rate. It provides a QSFP-DD-to-QSFP-DD copper direct-attach solution. They are suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between QSFP-400G ports of switches/routers within racks and across adjacent racks.
