|Part Number||QDD800-PC005||Vendor Name||FS|
|Form Factor||QSFP-DD to QSFP-DD||Max Data Rate||800Gbps|
|Media||Copper||Cable Type||Passive Twinax|
|Cable Length||0.5m (2ft)||Wire AWG||30AWG|
|Minimum Bend Radius||69mm||Power Consumption||≤0.005W|
|Jacket Material||PVC (OFNR)||Commercial Temperature Range||0 to 70°C (32 to 158°F)|
|Protocols||IEEE 802.3ck, QSFP-DD MSA||Warranty||5 Years|

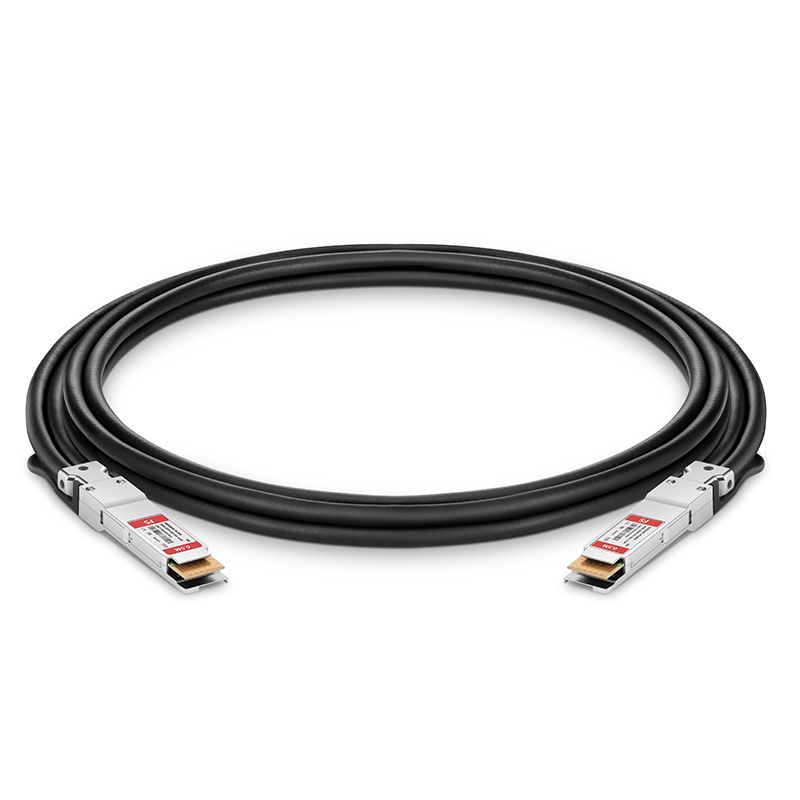

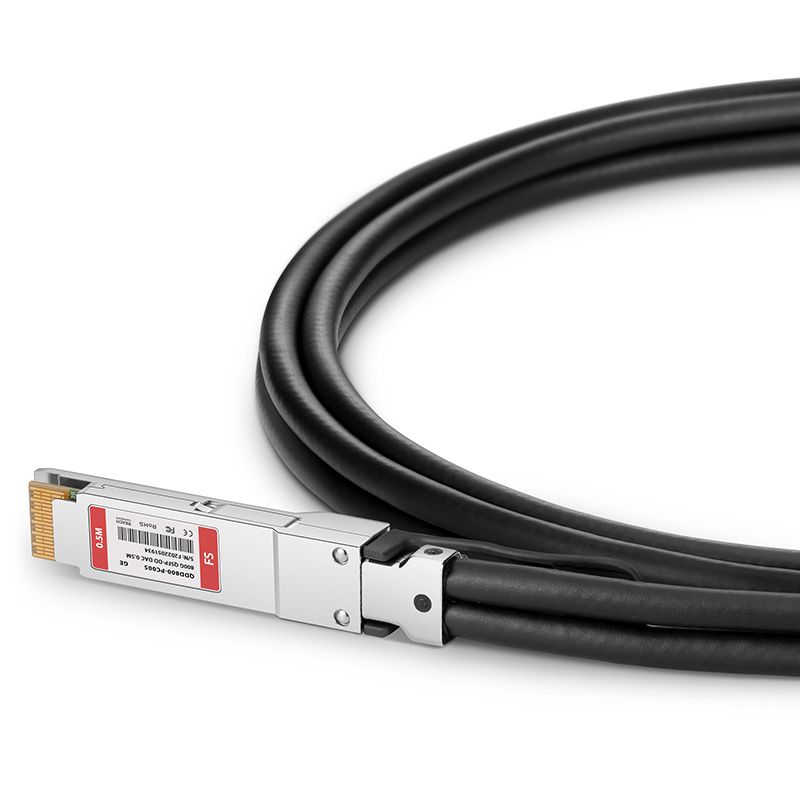

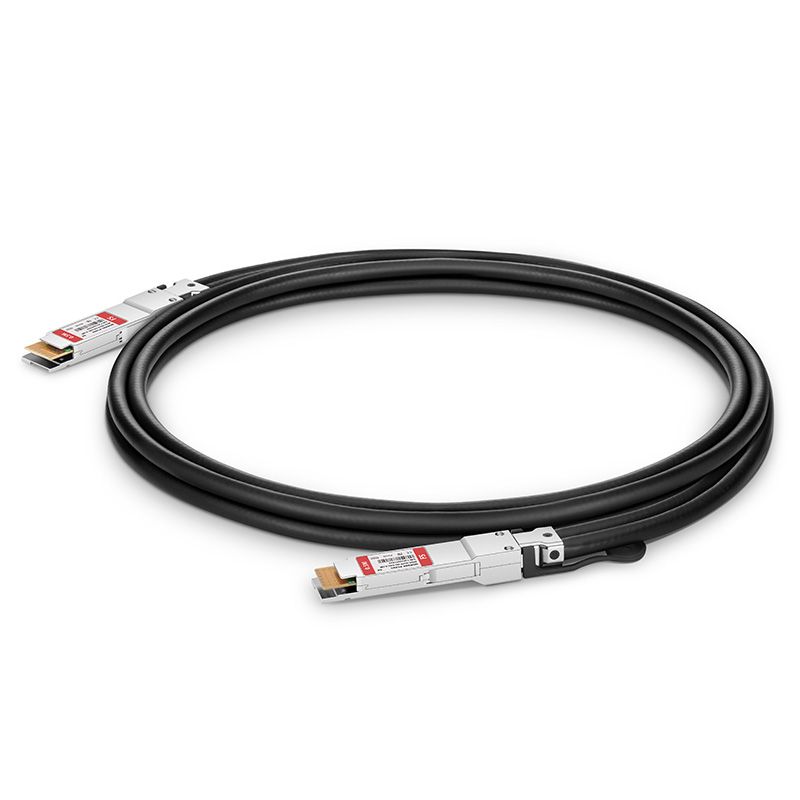

0.5m (2ft) Generic Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable
Generic Compatible 800G QSFP-DD DAC Twinax Cable (0.5-meter, Passive, QSFP-DD to QSFP-DD, 30AWG)
The 800G QSFP-DD DAC is a high-speed, cost-effective alternative to fiber optics in 800G Ethernet applications. It contains 16 high-speed copper pairs, each operating at data rates of up to 100Gb/s. This cable is compliant with IEEE 802.3ck Ethernet standard and QSFP-DD MSA Compliant.
With these features, they provide power-efficient connectivity for short-distance interconnects and enable higher port bandwidth, density and configurability in the data centers.
